Hyundai Azera: LCD display - Instrument cluster - Features of your vehicle - Hyundai Azera 2011-2023 Owners ManualHyundai Azera: LCD display

The Trip computer, User settings, Maintenance system, Warnings, etc. are displayed


The Trip computer, User settings, Maintenance system, Warnings, etc. are displayed on the LCD display. To change between groups, press the DISP button.

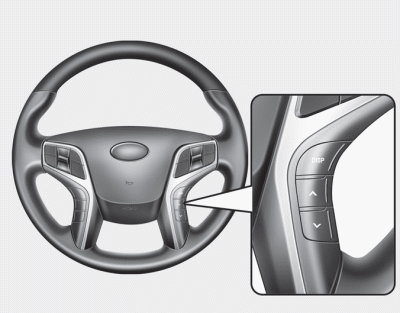

To change between modes in groups, press the button. or
Trip computer button.

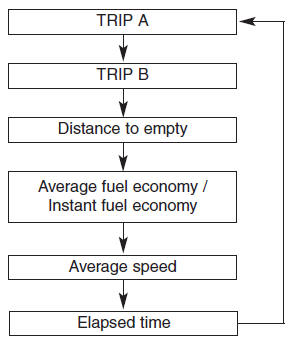

Trip computer

The trip computer is a microcomputer- controlled driver information system that displays information related to driving on the display when the ignition switch is in the ON position. All stored driving information (except odometer) resets if the battery is disconnected.

Press the   button to change between modes. or
  button to change between modes.


Odometer (km or mi.)


Odometer (km or mi.)

The odometer indicates the total distance the vehicle has been driven. You will


The odometer indicates the total distance the vehicle has been driven. You will also find the odometer useful to determine when periodic maintenance should be performed.

Tripmeter

TRIP A :


TRIP A :

Tripmeter A

TRIP B :

Tripmeter B

This mode indicates the distance of individual trips selected since the last tripmeter reset.

The meter's working range is from 0.0 to 9999.9 miles (0.0 to 9999.9 km). Pressing the DISP button for more than 1 second, when the tripmeter (TRIP A or TRIP B) is displayed, resets the tripmeter to zero (0.0).

Distance to empty

This mode indicates the estimated distance to empty based on the current fuel


This mode indicates the estimated distance to empty based on the current fuel in the fuel tank and the amount of fuel delivered to the engine. When the remaining distance is below 30 miles (50 km), --- will be displayed and the distance to empty indicator will blink.

The meters working range is from 30 to 999 miles (50 to 999 km).

Average fuel economy

This mode calculates the average fuel economy from the total fuel used and the


This mode calculates the average fuel economy from the total fuel used and the distance since the last average consumption reset. The total fuel used is calculated from the fuel consumption input. For an accurate calculation, drive more than 0.03 miles (50 m).

Pressing the DISP button for more than 1 second, when the average fuel economy is displayed, clears the average fuel economy to zero (--.-). If the vehicle speed exceeds 1.6 mph (1 km/h) after refueling more than 1.6 gallons (6 l), the average fuel consumption will be cleared to zero (---).

You can activate or deactivate the feature, resetting the average fuel economy after refueling more than 1.6 gallons (6 l). Refer to "User Settings" in this chapter.

Instant fuel economy

This mode calculates the instant fuel consumption every 0.4 seconds from the


This mode calculates the instant fuel consumption every 0.4 seconds from the driving distance and quantity of fuel injection.

Average speed

This mode calculates the average speed of the vehicle since the last average


This mode calculates the average speed of the vehicle since the last average speed reset.

Even if the vehicle is not in motion, the average speed keeps going while the engine is running.

Pressing the DISP button for more than 1 second, when the average speed is displayed, clears the average speed to zero (---).

Elapsed time

This mode indicates the total time traveled since the last driving time reset.


This mode indicates the total time traveled since the last driving time reset.

Even if the vehicle is not in motion, the driving time keeps going while the engine is running.

The meters working range is from 00:00~99:59.

Pressing the DISP button for more than 1 second, when the driving time is displayed, clears the driving time to zero (00:00).

User settings

1. When the vehicle is at a standstill, press the DISP button until the "User


1. When the vehicle is at a standstill, press the DISP button until the "User Settings" group is displayed.
2. Press the button to enter the "User Settings" or
group. button to enter the "User Settings"
group.
2. Change between items by pressing the button and choose an item by pressing or
the DISP button. button and choose an item by pressing
the DISP button.

Steering Easy Access (only for Driver Position Memory System equipped vehicle)

Off - The Steering Easy Access function will be deactivated.


Off - The Steering Easy Access function will be deactivated.

On - The steering wheel will automatically move away or toward the driver for the driver to enter or exit the vehicle comfortably.

Seat Easy Access (only for Driver Position Memory System equipped vehicle)

Off - The Seat Easy Access function will be deactivated.


Off - The Seat Easy Access function will be deactivated.

On - The driver's seat will automatically move forward or rearward for the driver to enter or exit the vehicle comfortably.

Auto Door Lock

Off - The auto door lock operation will be canceled.


Off - The auto door lock operation will be canceled.

Speed - All doors will be automatically locked when the vehicle speed exceeds 9.3mph (15km/h).

Shift Lever - All doors will be automatically locked if the shift lever is shifted from the P(Park) position to the R(Reverse), N(Neutral) or D(Drive) position.

Auto Door Unlock

Off - The auto door unlock operation will be canceled.


Off - The auto door unlock operation will be canceled.

Power Off - All doors will be automatically unlocked when the smart key is in the OFF position.

Shift Lever - All doors will be automatically unlocked if the shift lever is shifted to the P(Park) position.

Door - All doors will be automatically unlocked if the driver's door is unlocked.

Two Turn Unlock

Off - The two turn unlock function will be deactivated. Therefore, all doors


Off - The two turn unlock function will be deactivated. Therefore, all doors will unlock if the door is unlocked.

On - The drivers door will unlock if the door is unlocked. When the door is unlocked again within 4 seconds, all doors will unlock.

Lock/Unlock Sound

Off - The hazard warning light will blink but the chime will not sound when the


Off - The hazard warning light will blink but the chime will not sound when the door is locked or unlocked with the smart key.

On - The hazard warning light will blink and the chime will sound when the door is locked or unlocked with the smart key.

Headlamp Escort

Off - The Headlamp Escort and Headlamp Welcome function will be deactivated.


Off - The Headlamp Escort and Headlamp Welcome function will be deactivated.

On - The Headlamp Escort and Headlamp Welcome function will be activated.

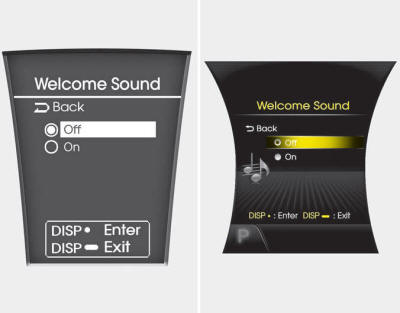

Welcome Sound

Off - The Welcome Sound function will be deactivated.


Off - The Welcome Sound function will be deactivated.

On - The Welcome Sound function will be activated.

Auto Triple Turn (One-touch triple turn signal)

Off - The Auto Triple Turn function will be deactivated.


Off - The Auto Triple Turn function will be deactivated.

On - The lane change signals will blink 3 times when the turn signal lever is moved slightly.

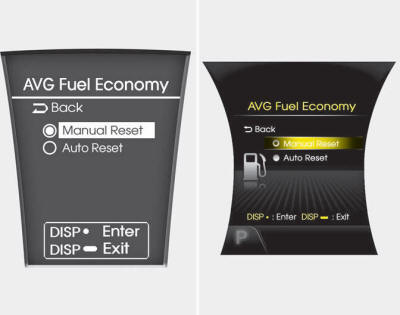

AVG Fuel Economy

Manual Reset - The average fuel economy will not reset automatically when you


Manual Reset - The average fuel economy will not reset automatically when you drive after refueling.

Auto Reset - The average fuel economy will reset automatically when you drive after refueling.

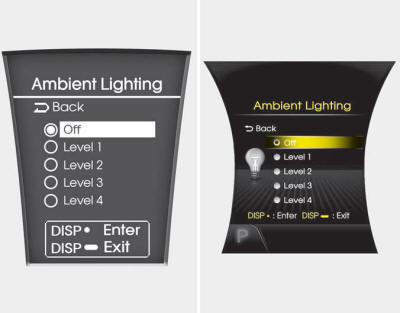

Ambient lighting

The brightness of the ambient light may be adjusted.


The brightness of the ambient light may be adjusted.

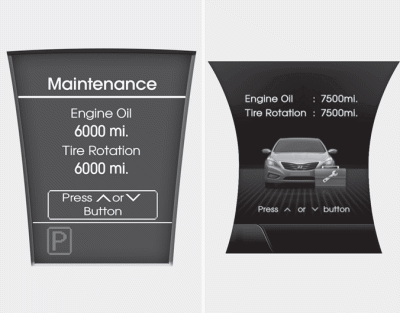

Maintenance system (if equipped)

The Maintenance system informs the driver when to replace engine oil and rotate


The Maintenance system informs the driver when to replace engine oil and rotate tires.

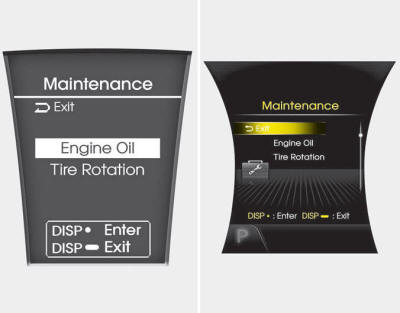

Maintenance

1. When the vehicle is at a standstill, pressing the DISP button for more than


1. When the vehicle is at a standstill, pressing the DISP button for more than 2 seconds with the ignition switch in the ON position or engine running, the LCD display on the cluster will change to the "Maintenance" group.

You can move to an item by pressing the button and select the item by pressing or
the DISP button. button and select the item by pressing
the DISP button.

2. Select the desired maintenance schedule.


2. Select the desired maintenance schedule.
3. If finished, you can come out of the Maintenance group by pressing the DISP button for more than 2 seconds.

LCD display warning and indicators

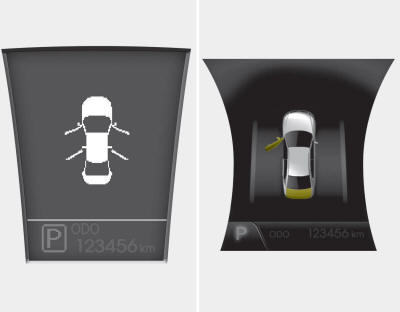

Door/Trunk open


Door/Trunk open

This indicator displays which door (or trunk) is opened.

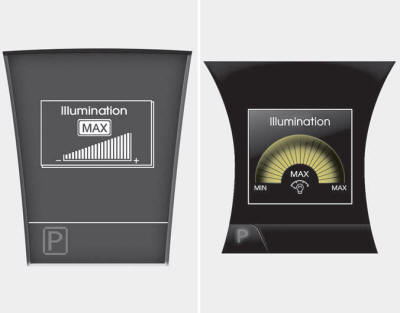

Illumination

The illumination intensity of the instrument panel is shown when adjusting it


The illumination intensity of the instrument panel is shown when adjusting it with the illumination control switch.

Rear Parking Assist Warning

Displays the area an obstacle is detected while moving rearward. For more details,


Displays the area an obstacle is detected while moving rearward. For more details, refer to "Rear Parking Assist System" in section 4.

Low Washer Liquid

This warning light illuminates for 12 seconds when the washer fluid reservoir


This warning light illuminates for 12 seconds when the washer fluid reservoir is nearly empty. Refill the washer fluid as soon as possible.

Check Fuel Cap

This warning light indicates the fuel filler cap is not tightened securely. Always


This warning light indicates the fuel filler cap is not tightened securely. Always make sure that the fuel filler cap is tight.

Low Tire Pressure

The low tire pressure position telltale will appear when one or more of your


The low tire pressure position telltale will appear when one or more of your tires are under-inflated. It will indicate the corresponding under-inflated tire. For more details, refer to TPMS in section 6.

Turn On "Fuse switch"

The notice appears to inform the driver to turn on the fuse switch in the instrument


The notice appears to inform the driver to turn on the fuse switch in the instrument panel under the steering wheel.

Key is not in vehicle

If the smart key is not in the vehicle and if any door is opened or closed with


If the smart key is not in the vehicle and if any door is opened or closed with the ENGINE START/STOP button in the ACC, ON, or START position, the warning illuminates on the LCD display. Also, the chime sounds for 5 seconds when the smart key is not in the vehicle and the door is closed.

Always have the smart key with you.

Key is not detected

If the smart key is not in the vehicle or is not detected and you press the ENGINE


If the smart key is not in the vehicle or is not detected and you press the ENGINE START/STOP button, the warning illuminates on the LCD display for 10 seconds. Also, the immobilizer indicator blinks for 10 seconds.

Low key battery

If the ENGINE START/STOP button changes to the OFF position when the smart key


If the ENGINE START/STOP button changes to the OFF position when the smart key in the vehicle discharges, the warning illuminates on the LCD display for about 10 seconds. Also, the warning chime sounds once.

Replace the battery with a new one.

Press brake pedal to start engine

If the ENGINE START/STOP button changes to the ACC position twice by pressing


If the ENGINE START/STOP button changes to the ACC position twice by pressing the button repeatedly without depressing the brake pedal, the warning illuminates on the LCD display for about 10 seconds to indicate that you should depress the brake pedal to start the engine.

Shift to "P" position

If you try to turn off the engine without the shift lever in the P (Park) position,


If you try to turn off the engine without the shift lever in the P (Park) position, the ENGINE START/STOP button changes to the ACC position. If the button is pressed once more it will change to the ON position. The warning illuminates on the LCD display for about 10 seconds to indicate that you should press the ENGINE START/STOP button with the shift lever in the P (Park) position to turn off the engine.

Also, the warning chime sounds for about 10 seconds. (if equipped)

Press start button again

If you cannot operate the ENGINE START/STOP button when there is a problem with


If you cannot operate the ENGINE START/STOP button when there is a problem with the ENGINE START/STOP button system, the warning illuminates for 10 seconds and the chime sounds to indicate that you could start the engine by pressing the ENGINE START/STOP button once more.

The chime will stop if the ENGINE START/STOP button system works normally or the theft alarm system is armed.

If the warning illuminates each time you press the ENGINE START/STOP button, take your vehicle to an authorized HYUNDAI dealer and have the system checked.

Shift to "P" or "N" to start the engine

If you try to start the engine with the shift lever not in the P (Park) or N


If you try to start the engine with the shift lever not in the P (Park) or N (Neutral) position, the warning illuminates for about 10 seconds on the LCD display.

You can also start the engine with the shift lever in the N (Neutral) position, but for your safety start the engine with the shift lever in the P (Park) position.

Please press start button with smart key

If you press the ENGINE START/ STOP button while the warning Key is not detected


If you press the ENGINE START/ STOP button while the warning Key is not detected illuminates the warning Please press the start button with smart key illuminates for 10 seconds on the LCD display. Also, the immobilizer indicator blinks for 10 seconds.

Check fuse "BRAKE SWITCH"

When the stop lamp fuse is disconnected, the warning illuminates for 10 seconds


When the stop lamp fuse is disconnected, the warning illuminates for 10 seconds on the LCD display.

Replace the fuse with a new one. If that is not possible you can start the engine by pressing the ENGINE START/STOP button for 10 seconds in ACC.

Gauges
Speedometer The speedometer indicates the vehicle speed. The speedometer is calibrated in miles per hour and/or kilometers per hour. Tachometer The tachometer indicates the engine speed in rev ...

Warnings and indicators (lnstrument cluster)
All warning lights are checked by turning the ignition switch ON (do not start the engine). Any light that does not illuminate should be checked by an authorized HYUNDAI dealer. After starting the e ...
