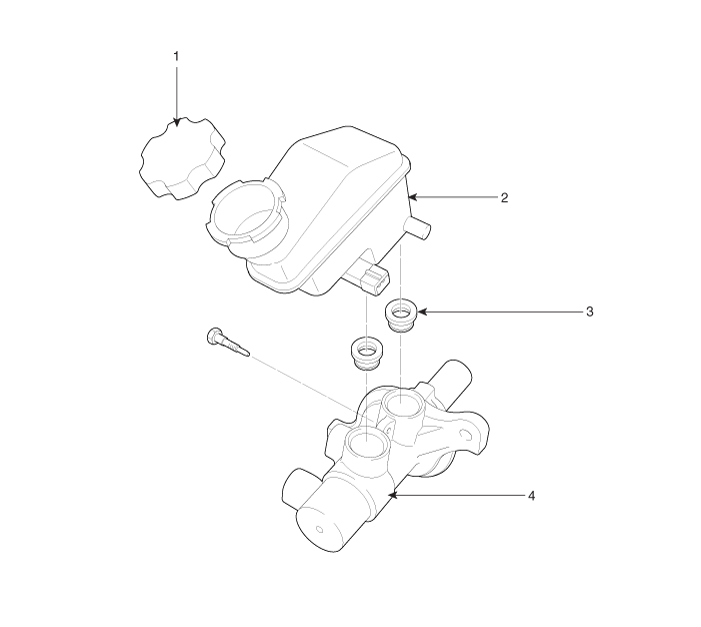

Hyundai Azera: Master Cylinder Components and Components Location

Brake Booster Repair procedures

Brake Booster Operating Test For simple checking of the brake booster operation, carry out the following tests. 1. Run the engine for one or two minutes, and then stop it. If the pedal depress ...

Master Cylinder Repair procedures

Removal 1. Turm ignition switch OFF and disconnect the negative (-) battery cable. 2. Remove the air duct (B) and air cleaner assembly (A). 3. Disconnect the brake fluid level switch conne ...
