| Components |

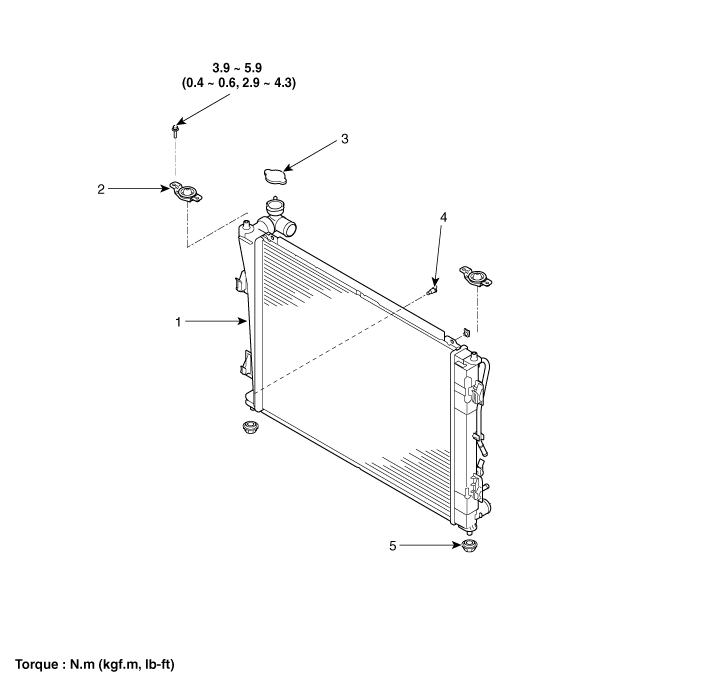

| 1. Radiator 2. Radiator mounting bracket 3. Radiator cap | 4. Drain plug 5. Mounting insulator |
Components and Components Location
Components Location
1. Automatic transaxle2. Valve body assembly3. Oil pump assembly
...
Oil Cooler Repair procedures
Removal and Installation
1.
Remove the radiator upper hose and lower hose.
(Refer to Engine Mechanical System - "Radiator Hose")
2.
Remove the cooling fan assembly.
(Refer to Engine Mechani ...
