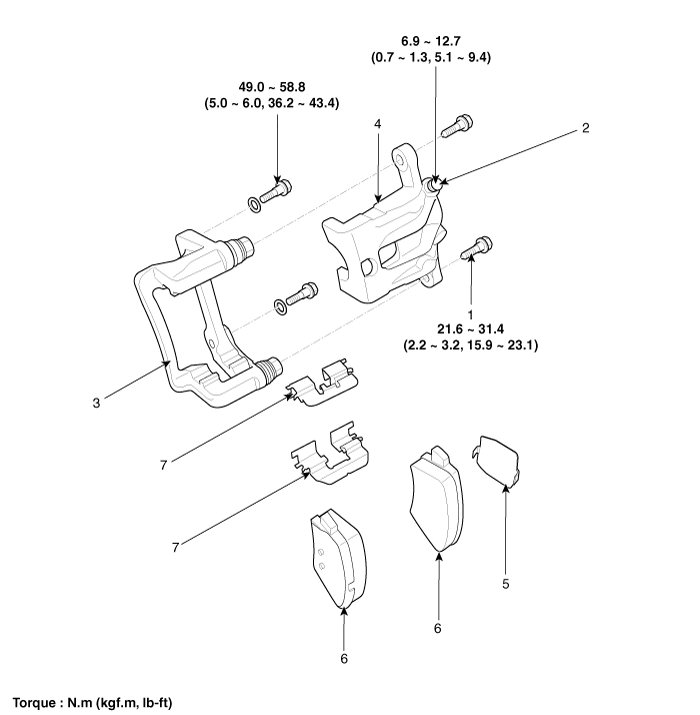

| Components |
| 1. Guide rod bolt 2. Bleed screw 3. Caliper carrier 4. Caliper body | 5. Inner pad shim 6. Brake pad 7. Pad retainer |
Front Disc Brake Repair procedures
Removal
1.
Remove the front wheel & tire.
Tightening torque:
88.3 ~107.9 N.m (9.0 ~11.0 kgf.m, 65.1 ~79.6 lb-ft)
2.
Loosen the hose eyebolt (C) and caliper mounting bolts (B), then ...
Rear Disc Brake Repair procedures
Removal
1.
Remove the rear wheel & tire.
Tightening torque:
88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft)
2.
Loosen the bolt & nut and then disconnect the shock absorbe ...
