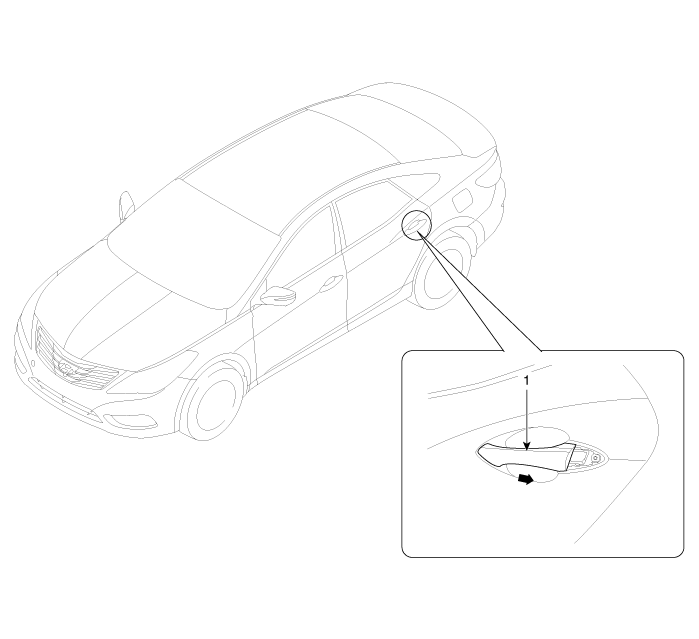

| Component Location |
| 1. Rear door outside handle |
Rear Door Module Repair procedures
Replacement
1.
Remove the rear door window glass.
(Refer to Rear Door - "Rear Door Window Glass")
2.
Remove the rear door outside handle.
(Refer to Rear Door - "Rear Door Outside Handle")
...
Rear Door Outside Handle Repair procedures
Replacement
1.
Remove the rear door trim.
(Refer to Rear Door - "Rear Door Trim")
2.
Remove the hole plug (B).
3.
After loosening the mounting bolt, then remove the rear door outside hand ...
