Hyundai Azera: Seat Heater Schematic Diagrams
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Body Electrical System / Seat Electrical / Seat Heater Schematic Diagrams
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Body Electrical System / Seat Electrical / Seat Heater Schematic Diagrams

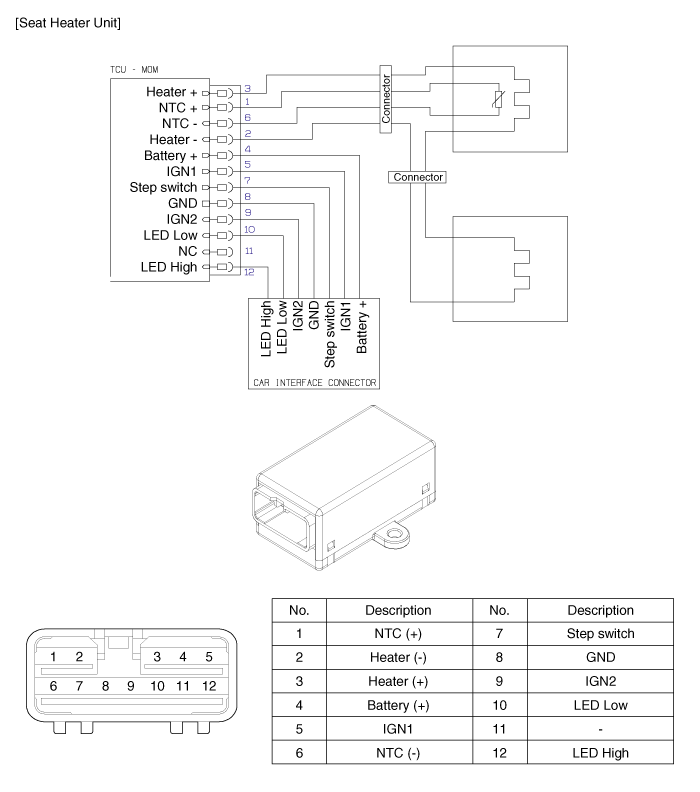

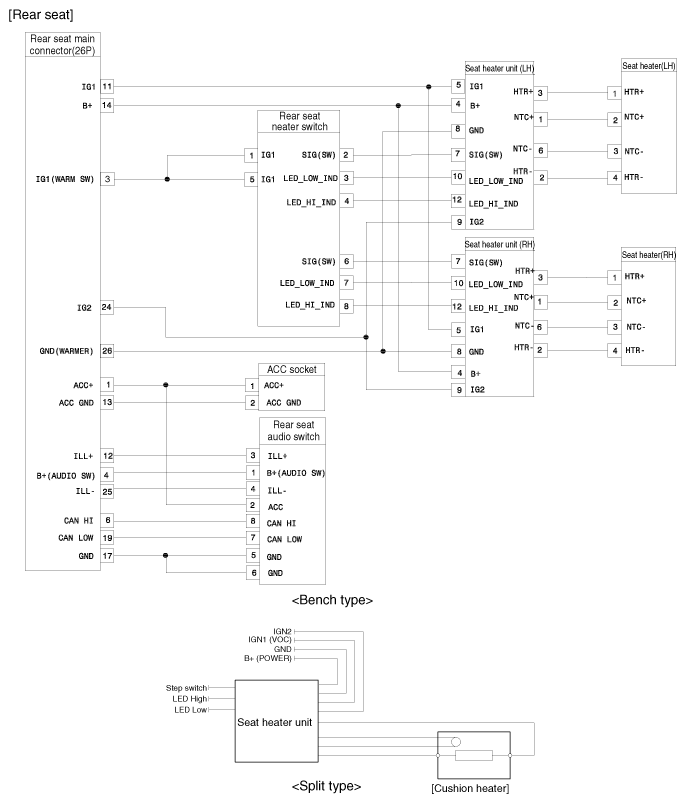

| Circuit Diagram |
Seat Heater Components and Components Location
Component Location
...
Seat Heater Repair procedures
Inspection
First Seat Heater
1.
Check for continuity and measure the resistance between No.1 and NO.4 terminals.
No.DescriptionNo.Description1Heater (+)3NTC (-)2NTC (+)4Heater (-)
Standar ...
