Hyundai Azera: Timing Chain Cover Components and Components Location
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Engine Mechanical System / Timing System / Timing Chain Cover Components and Components Location
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Engine Mechanical System / Timing System / Timing Chain Cover Components and Components Location

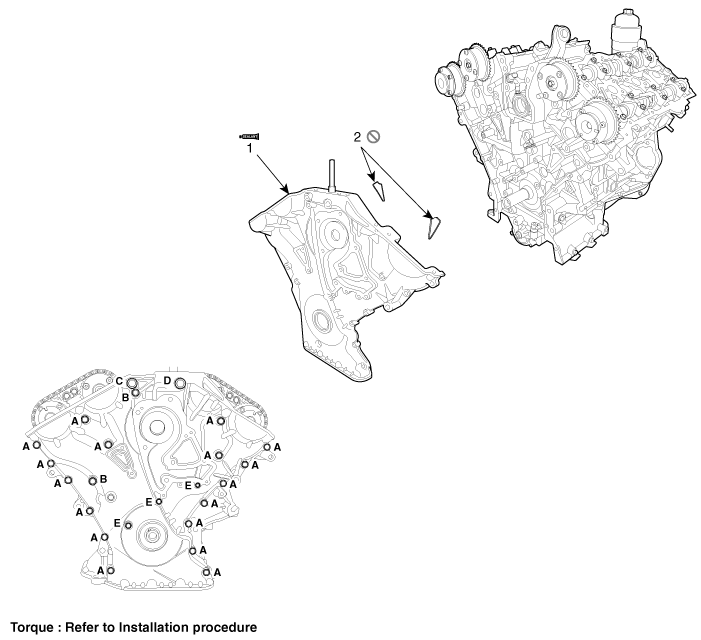

| Components |
| 1. Timing chain cover 2. Gasket |
Front Oil Seal Repair procedures
Removal
1.
Remove the crankshaft damper pulley.
(Refer to Timing System - "Crankshaft Damper Pulley")
2.
Remove the front oil seal (A).
Installation
1.
Using SST(09231-3C100), install t ...
Timing Chain Cover Repair procedures
Removal
1.
Remove the LH/RH cylinder head cover.
(Refer to Cylinder Head Assembly - "Cylinder Head Cover")
2.
Remove the lower oil pan.
(Refer to Lubrication System - "Oil Pan")
3.
Rem ...
