| Replacement |
When the receiver first arrives for replacement:
|
It is important to make sure that the correct receiver is
used to replace the faulty part i.e. it must be High Line (95800-3M100)
in order to have the correct inflation warning thresholds set. |
| 1. |
Disconnect vehicle battery. |
| 2. |
Remove the rear bumper.
|
| 3. |
Remove faulty part and fit bracket assembly to new part.
|
| 4. |
Secure new part to vehicle and fit connector. |
| 5. |
Re-connect battery and turn Ignition on.

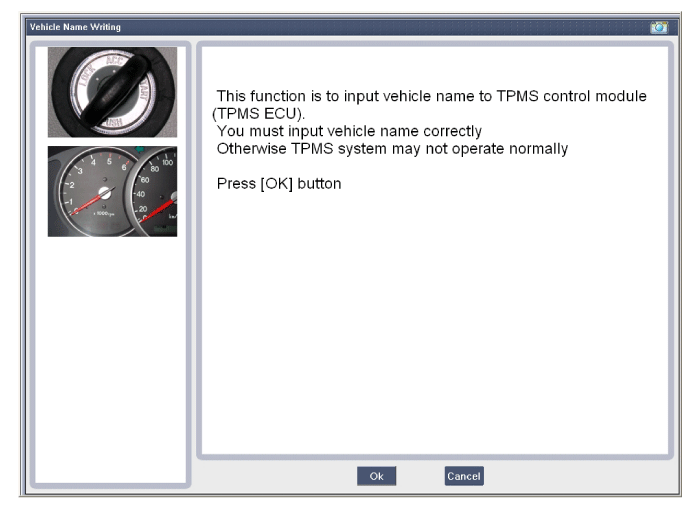

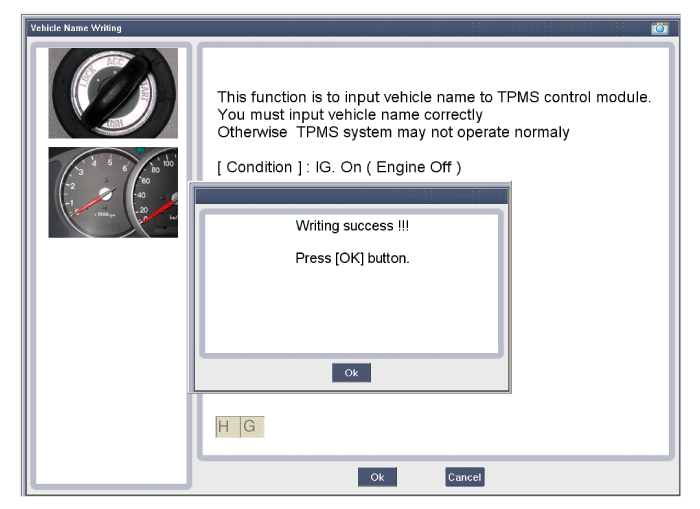

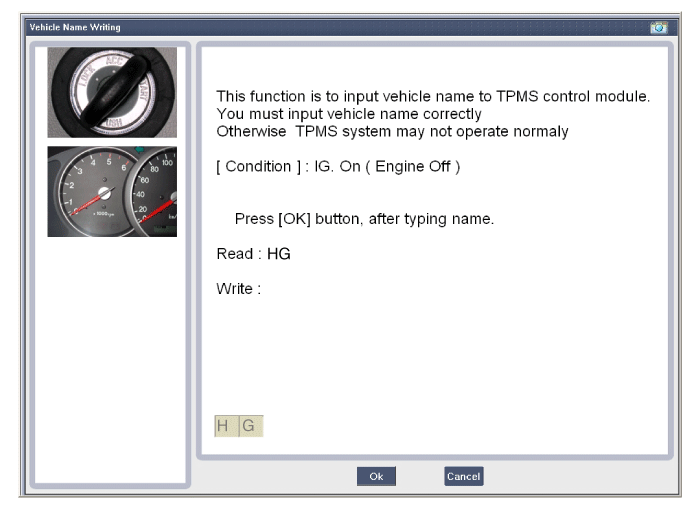

Vechicle Name Writing

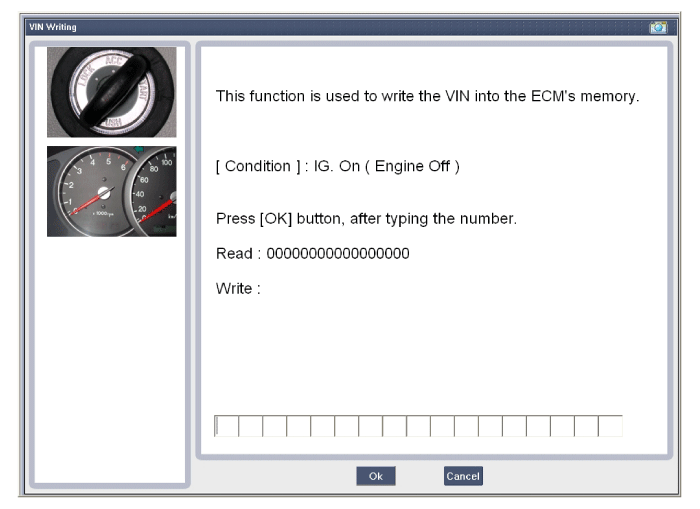

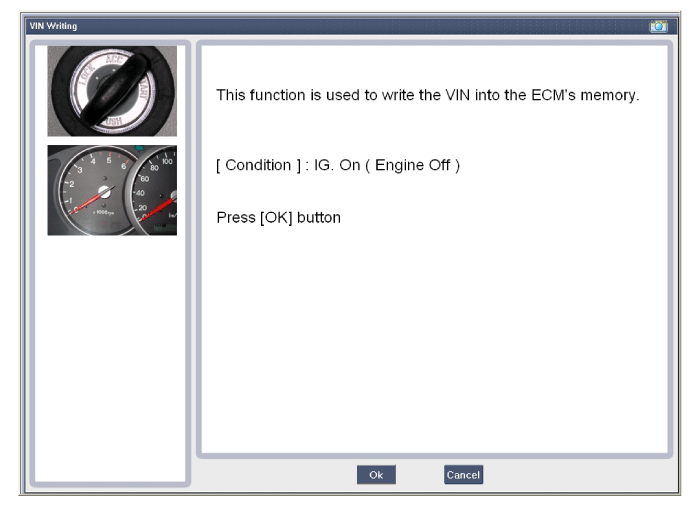

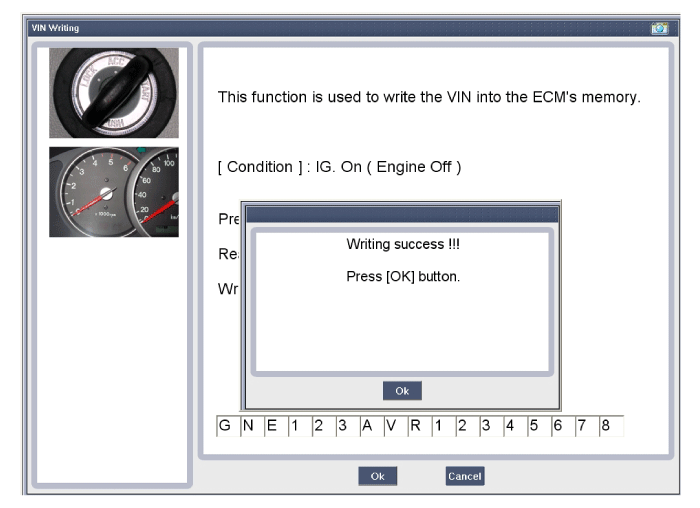

VIN Writing
|
TPMS Receiver Description and Operation
Operation
1.
General Function
A.
Auto-locate/learn takes place only once per Ignition cycle.
B.
On successful completion, 4 road wheel sensor ID's, together
with their respective road whee ...
