| Components |

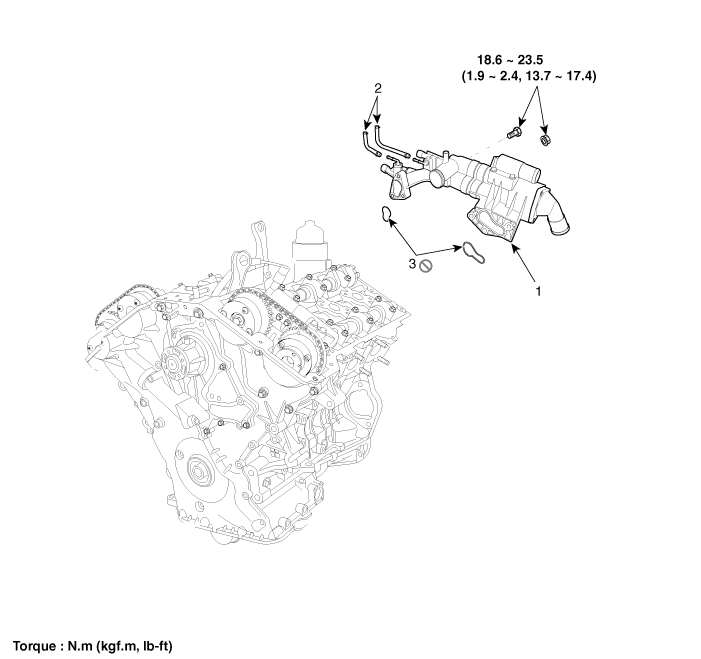

| 1. Water temperature control assembly 2. Throttle body water hose 3. Gasket |
Reservoir Tank Repair procedures
Removal and Installation
1.
Disconnect the over flow hose (A), and then remove the resorvior tank (B).
Tightening torque:
3.9 ~ 5.9 N.m (0.4 ~ 0.6 kgf.m, 2.9 ~ 4.3 lb-ft)
2.
Installation ...
Water Temperature Control Assembly Repair procedures
Removal and Installation
1.
Remove the radiator upper hose and lower hose.
(Refer to Cooling System - "Radiator Hose")
2.
Disconnect the throttle body water hoses.
(Refer to Fuel System - ...
