| Lug nut tightening sequence |
Tighten the hub nuts as follows.
Tightening torque:
88.3 ~ 107.9N.m (9.0 ~ 11.0kgf.m, 65.1 ~ 79.6lb-ft) |
When using an impact gun, final tightening torque should be checked using a torque wrench. |
Run out inspection
| 1. |
Jack up the vehicle. |
| 2. |

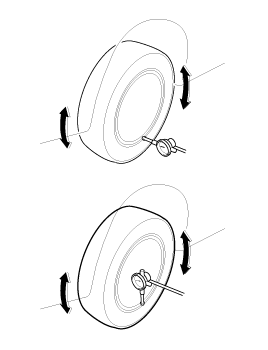

Measure the wheel Run-out by using a dial indicator as illustration below.
| ||||||||||||
| 3. |
If measured value exceeds the standard value, replace the wheel.
|
