| Components |

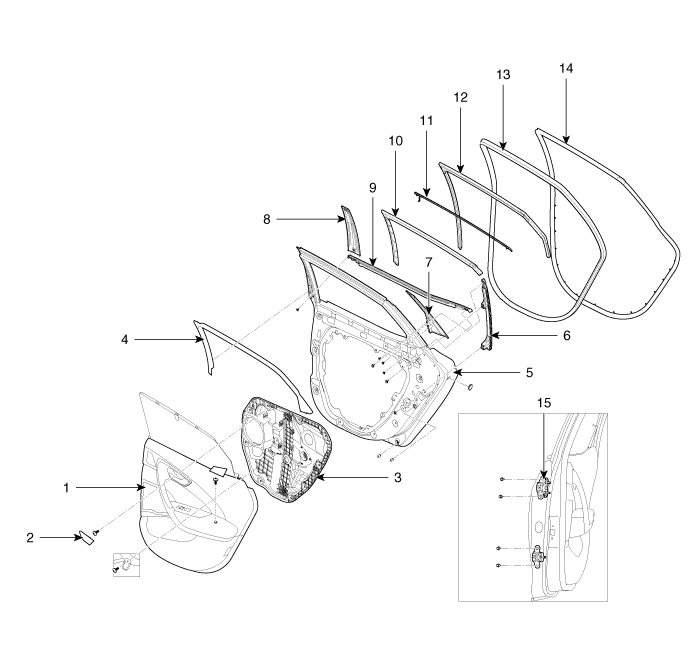

| 1. Rear door trim 2. Rear door inside handle cap 3. Rear door module 4. Rear frame inner cover 5. Rear door panel 6. Rear door delta lower run & channel 7. Rear door frame rear garnish 8. Rear door frame garnish | 9. Rear door belt outer weatherstrip 10. Rear door upper opening weatherstrip 11. Rear door frame molding 12. Rear door window glass run assembly 13. Rear door body side weatherstrip 14. Rear door side weatherstrip 15. Rear door hinge |
Rear Door
...
Repair procedures
Adjustment
Glass Adjustment
•
Check the glass run channel for damage or deterioration, and replace them if necessary.
1.
Remove the rear door trim.
(Refer to Rear ...
