| Component Location |

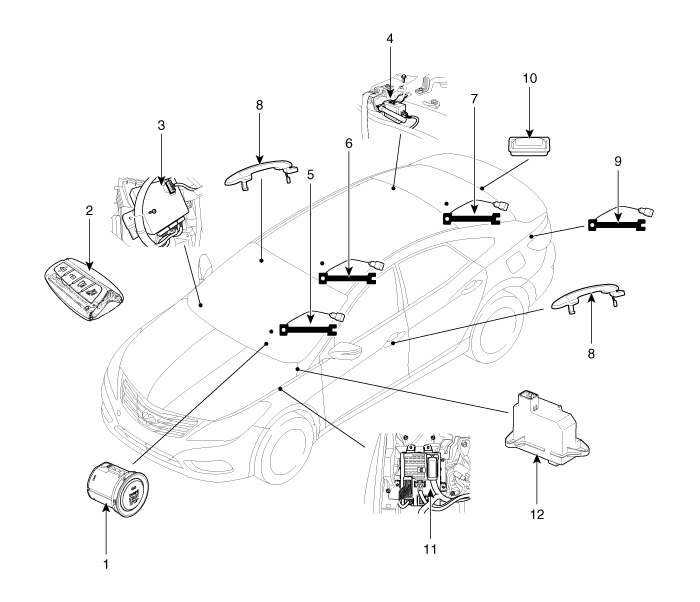

| 1. Start Stop Button(SSB) 2. FOB key 3. Smart key unit 4. RF receiver 5. Interior antenna 1 6. Interior antenna 2 | 7. Trunk antenna 8. Door handle & door antenna 9. Bumper antenna 10. Trunk lid open switch 11. IPM (Intelligent intergrated Platform Module) 12. ESCL (Electrical Steering Column Lock) |
Schematic Diagrams
Circuit Diagram
...
See also:
Torque Converter Control Solenoid Valve (T/CON_VFS) Specifications
Specifications
Direct control VFS[T/CON]
? Control type : Normal low type
Control Pressure [kpa (kgf/cm?, psi)] 9.81~ 500.14 (0.1~ 5.1, 1.42 ~ 72.54)Current value(mA)50 ~ 850 Internal res ...
Components and Components Location
Components Location
1. Fuel Tank2. Fuel Pump3. Fuel Filter4. Fuel Pressure Regulator5. Canister6. Fuel Tank Air Filter7. Fuel Tank Band8. Fuel Tank Pressure Sensor (FTPS)9. Canister Close V ...
Rheostat Repair procedures
Inspection
1.
Disconnect the negative (-) battery terminal.
2.
Remove the passenger compartment juction box cover.
3.
Remove the crash pad side switch assembly (A) by pushing it through ju ...
