Hyundai Azera: Engine Room Under Cover Components and Components Location
Fifth generation HG (2011–2022) / Hyundai Azera 2011-2022 Service Manual / Engine Mechanical System / Engine And Transmission Assembly / Engine Room Under Cover Components and Components Location
Fifth generation HG (2011–2022) / Hyundai Azera 2011-2022 Service Manual / Engine Mechanical System / Engine And Transmission Assembly / Engine Room Under Cover Components and Components Location

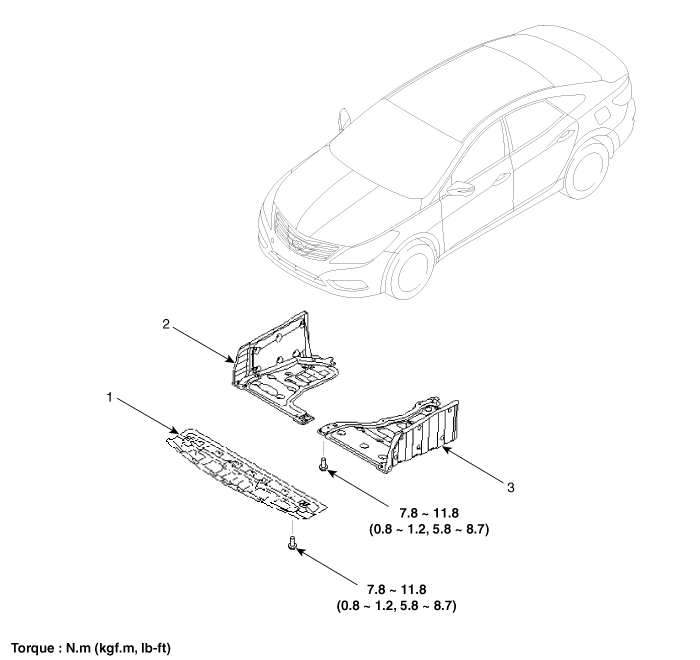

| Components |
| 1. Engine room front under cover 2. Engine room RH Under cover 3. Engine room LH Under cover |
Engine Cover Repair procedures
Removal and Installation
1.
Remove the engine cover (A).
•
Lift up the lower end of engine cover, then left and right alternately.
•
When installing, confirm that t ...
Engine Room Under Cover Repair procedures
Removal and Installation
1.
Remove the engine room under cover (A) and (B).
Tightening torque:
7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.8 ~ 8.7 lb-ft)
•
When removing the ...
