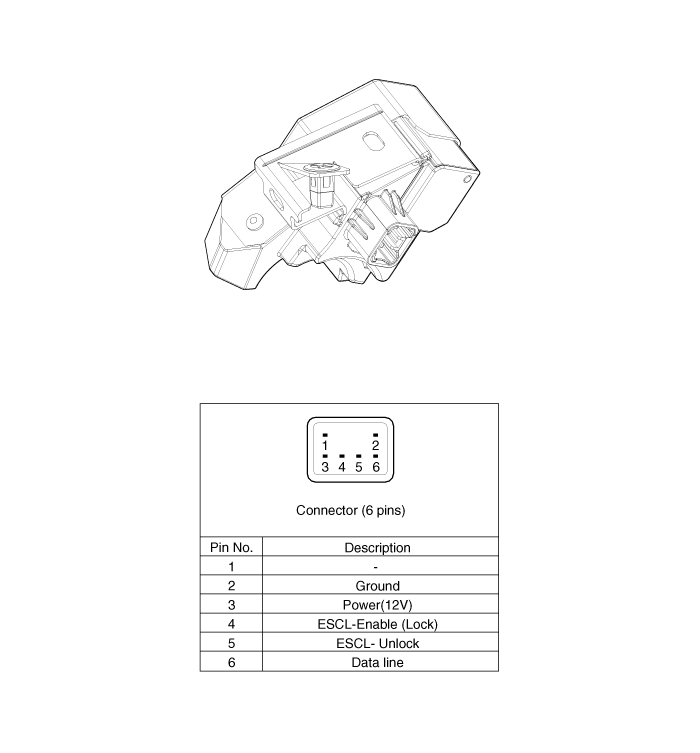

Hyundai Azera: ESCL(Electronic Steering Column Lock) Components and Components Location

Start/Stop Button Repair procedures

Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the AVN head unit. (Refer to AVN System - "AVN Head Unit") 3. Disconnect the start/stop button connector. Push the hook ...

ESCL(Electronic Steering Column Lock) Repair procedures

Removal 1. Disconnect the negative(-) battery terminal. 2. Remove the crash pad lower panel. (Refer to Body - "Crash Pad Lower Panel") 3. Remove the steering column upper and lower shroud ...
