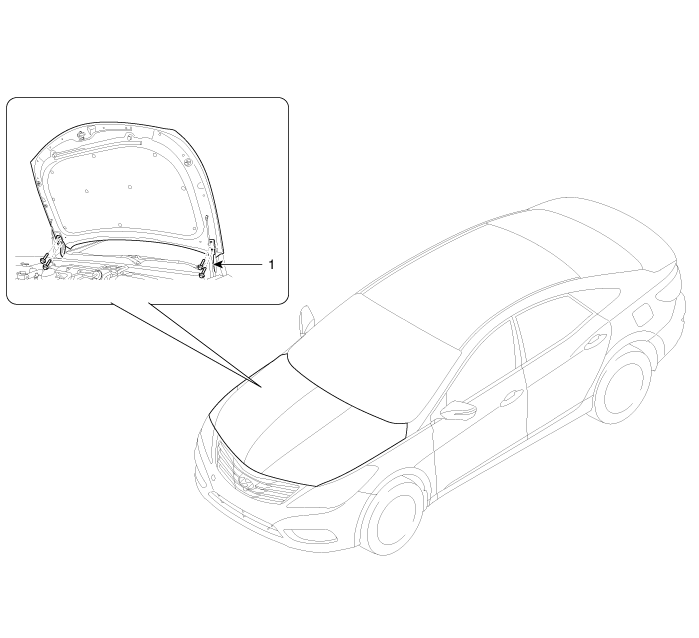

| Component Location |
| 1. Hood assembly |
Repair procedures
Adjustment
1.
After loosening the hinge (A) mounting bolt, adjust the hood (B) by moving it up or down, or right or left.
2.
Adjust the hood height by turning the hood overslam bumpers (C).
...
Hood Assembly Repair procedures
Replacement
•
When removing and installing the hood, an assistant is necessary.
•
Be careful not to damage the hood and body.
•
When removing the clips, use a c ...
