Hyundai Azera: Hood Latch Components and Components Location
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Body (Interior and Exterior) / Hood / Hood Latch Components and Components Location
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Body (Interior and Exterior) / Hood / Hood Latch Components and Components Location

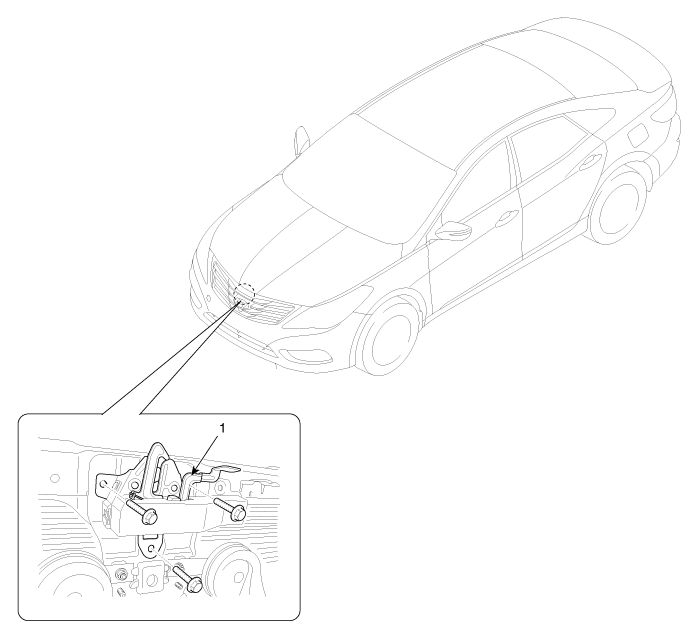

| Component Location |
| 1. Hood latch |
Hood Latch Release Handle Repair procedures
Replacement
1.
Using a screwdriver or remover, remove the hood release handle (A).
•
Use a 6mm hex bit to press the center until the handle easily pulls off the post.
...
Hood Latch Repair procedures
Replacement
1.
Remove the front bumper cover.
(Refer to Front Bumper - "Front Bumper Cover")
2.
Detach the clips, then remove hood latch cover (A).
3.
Remove the hood latch (A) mounting b ...
