| Components |

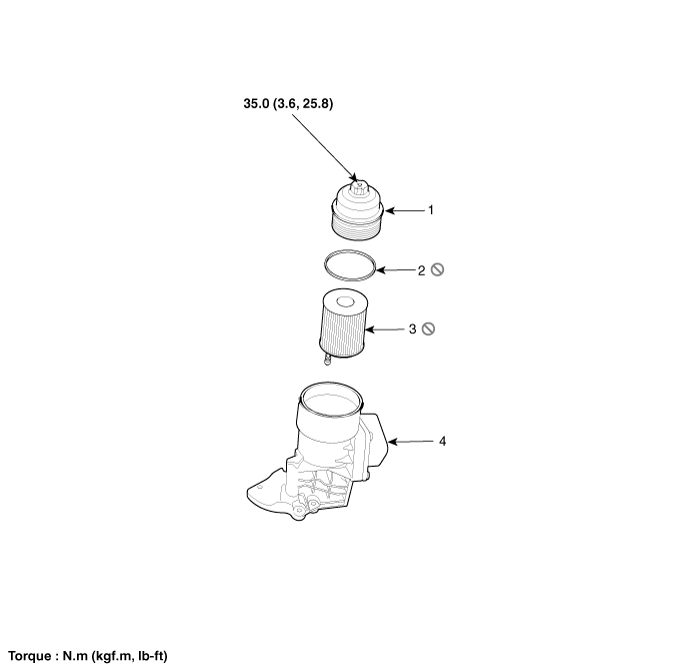

| 1. Oil filter cap 2. O-ring | 3. Oil filter element 4. Oil filter body |
Engine Oil Flow Diagram
Engine oil flow diagram
...
Oil Filter Repair procedures
Replacement
1.
Remove the engine cover.
2.
Wait for 5 minutes after loosening the oil filter cap to drain well the oil in the oil filter.
3.
Replace the oil filter.
(1)
Disconnect the ...
