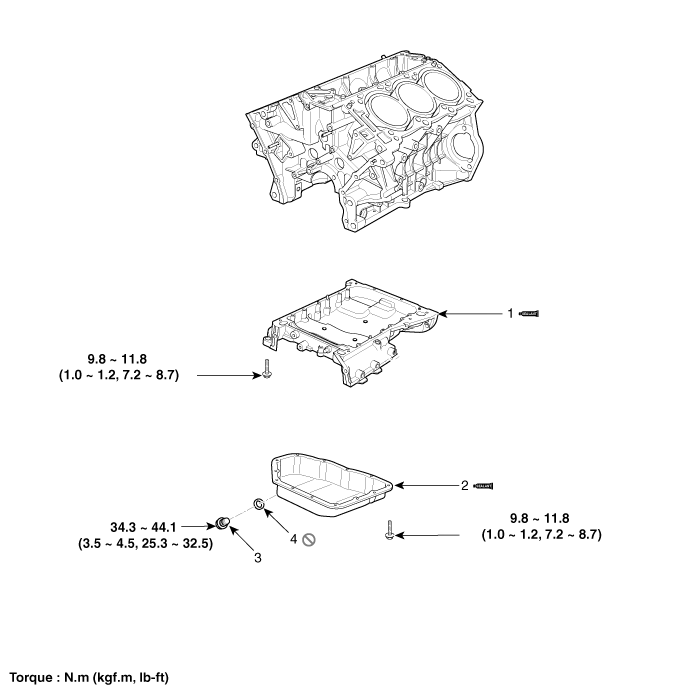

| Components |
| 1. Upper oil pan 2. Lower oil pan | 3. Drain plug 4. Drain plug gasket |
Oil Filter Body Repair procedures
Removal and Installation
1.
Remove the water pipe.
(Refer to Cooling System - "Water Pipe")
2.
Wait for 5 minutes after loosening the oil filter cap to drain well the oil in the oil filter.
...
Oil Pan Repair procedures
Removal
[Lower oil pan]
1.
Drain the engine oil.
(Refer to Lubrication System - "Engine Oil")
2.
Remove the front muffler.
(Refer to Intake And Exhaust System - "Front Muffler")
3.
...
