Hyundai Azera: Panorama sunroof (If equipped)
Fifth generation HG (2011–2025) / Hyundai Azera 2011-2025 Owners Manual / Features of your vehicle / Panorama sunroof (If equipped)

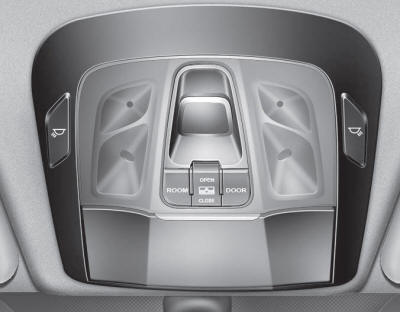

If your vehicle is equipped with a sunroof, you can slide or tilt your sunroof with the sunroof control lever located on the overhead console. The sunroof can only be opened, closed, or tilted when the ignition switch is in the ON position.
- In cold and wet climates, the sunroof may not work properly due to freezing conditions.
- After the vehicle is washed or in a rainstorm, be sure to wipe off any water that is on the sunroof before operating it.
CAUTION - Sunroof control lever
Do not continue to move the sunroof control lever after the sunroof is fully opened, closed, or tilted. Damage to the motor or system components could occur.
Emergency fuel filler lid release
If the fuel filler lid does not open using the remote fuel filler lid release,
you can open it manually by pulling the handle outward slightly.
CAUTION
Do not pull the handle excessively, other ...
Sunshade
To open the sunshade, press the sunshade control switch (1).
To close the sunshade, press the sunshade control switch (2). If you press
the switch when the sunroof glass is opened, the s ...
