Hyundai Azera: Radiator Components and Components Location
Fifth generation HG (2011–2023) / Hyundai Azera 2011-2023 Service Manual / Engine Mechanical System / Cooling System / Radiator Components and Components Location
Fifth generation HG (2011–2023) / Hyundai Azera 2011-2023 Service Manual / Engine Mechanical System / Cooling System / Radiator Components and Components Location

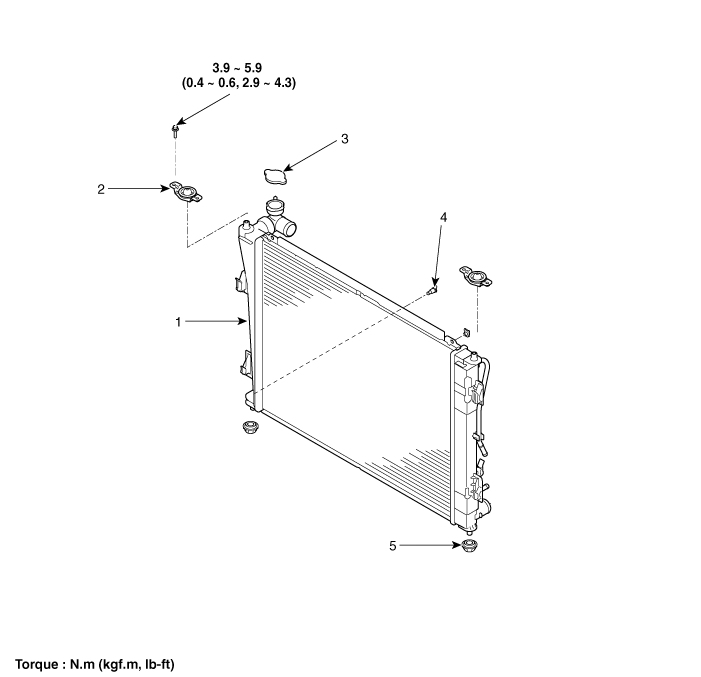

| Components |
| 1. Radiator 2. Radiator mounting bracket 3. Radiator cap | 4. Drain plug 5. Mounting insulator |
Cooling Fan Repair procedures
Removal and Installation
1.
Remove the battery and tray.
(Refer to Engine Electrical System - "Battery")
2.
Remove the air duct and air cleaner assembly.
(Refer to Intake And Exhaust System ...
Radiator Repair procedures
Removal and Installation
1.
Remove the radiator upper hose and lower hose.
(Refer to Cooling System - "Radiator Hose")
2.
Remove the cooling fan assembly.
(Refer to Cooling System - "Cooli ...
