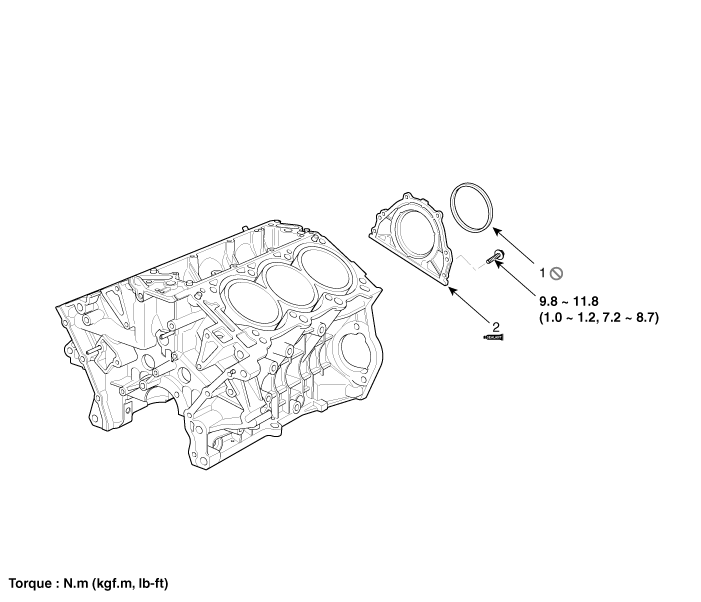

Hyundai Azera: Rear Oil Seal Components and Components Location

Drive Plate Repair procedures

Removal and Installation 1. Remove the automatic transaxle. (Refer to Automatic Transaxle System - "Automatic Transaxle") 2. Remove the adapter plate (B) and the drive plate (A). Tighteni ...

Rear Oil Seal Repair procedures

Removal 1. Remove the drive plate. (Refer to Cylinder Block - "Drive Plate") 2. Remove the rear oil seal (A). Installation 1. Using SST(09231-3C200, 09231-H1100), install the rear oil s ...
