Hyundai Azera: Relay Box (Engine Compartment) Components and Components Location - Fuses And Relays - Body Electrical System - Hyundai Azera 2011-2026 Service ManualHyundai Azera: Relay Box (Engine Compartment) Components and Components Location

Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Body Electrical System / Fuses And Relays / Relay Box (Engine Compartment) Components and Components Location

Components

Components and Components Location

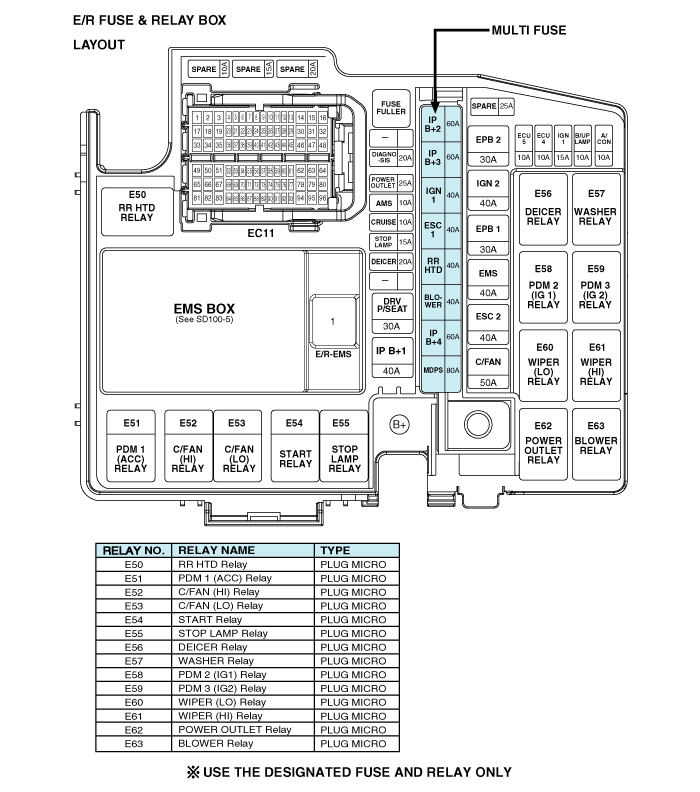

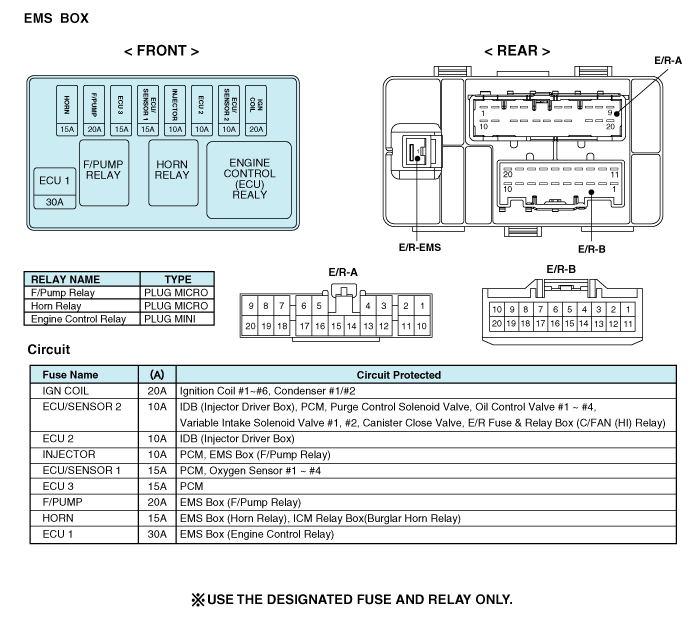

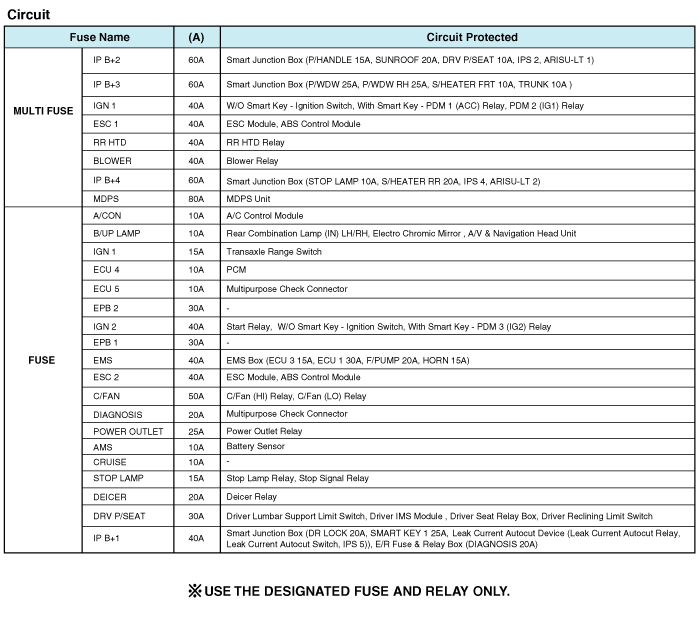

Component Location 1. Front deicer relay2. Washer3. Button Start 3(IG2) 4. Wiper(High)5. Blower relay6. Power outlet7. Wiper(Low)8. Button Start 2(IG1)9. Stop lamp10. Start11. Cooling fan(Low)12. ...

Relay Box (Engine Compartment) Repair procedures
Inspection Power Relay Test (Type A)     - Do not use pliers. - Pliers will damage the relays, which could cause the engine to stall or not start. - Carefully remove ...
