| Components |

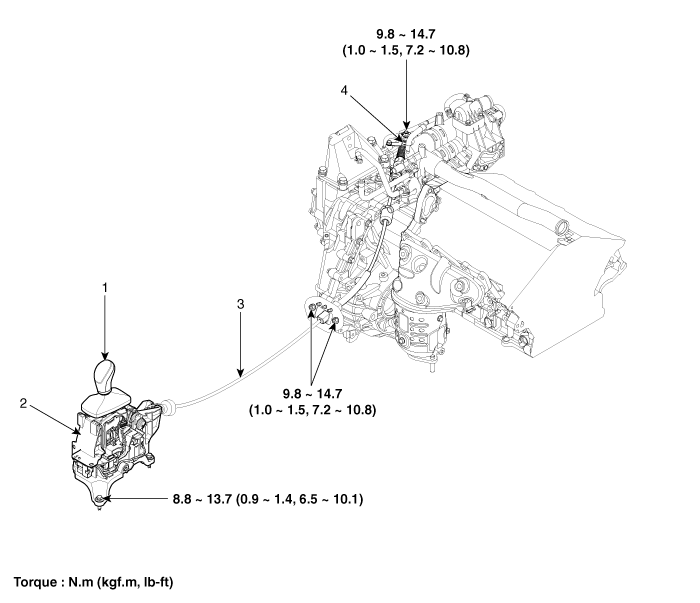

| 1. Shift lever knob 2. Shift lever assembly | 3. Control cable assembly 4. Manual control lever (T/M side) |
Inhibitor Switch Repair procedures
Inspection
•
Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
Inspection flow
Items to chec ...
Shift Lever Repair procedures
Removal
1.
Remove the center console assembly.
(Refer to Body - "Console")
2.
Remove the duct (A).
3.
Disconnect sports mode connector (A).
4.
Remove the shift cable (B).
5.
Remo ...
