Hyundai Azera: Timing Chain Components and Components Location
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Engine Mechanical System / Timing System / Timing Chain Components and Components Location
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Engine Mechanical System / Timing System / Timing Chain Components and Components Location
| Components |

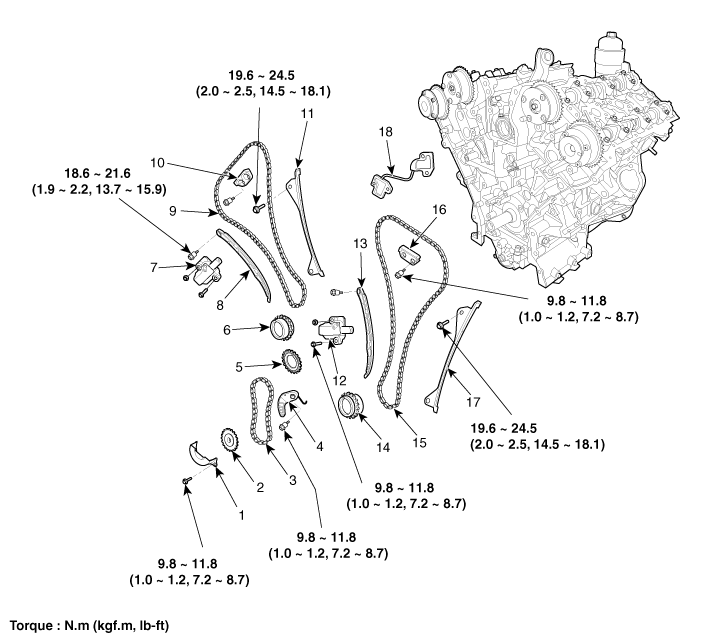

| 1. Oil pump chain cover 2. Oil pump sprocket 3. Oil pump chain 4. Oil pump tensioner assembly 5. Crankshaft oil pump sprocket 6. Crankshaft RH chain sprocket | 7. RH Timing chain auto tensioner 8. RH Timing chain tensioner arm 9. RH Timing chain 10. RH Timing chain cam to cam guide 11. RH Timing chain guide 12. LH Timing chain auto tensioner | 13. LH Timing chain tensioner arm 14. Crankshaft LH chain sprocket 15. LH Timing chain 16. LH Timing chain cam to cam guide 17. LH Timing chain guide 18. Tensioner adapter |
Timing Chain Cover Repair procedures
Removal
1.
Remove the LH/RH cylinder head cover.
(Refer to Cylinder Head Assembly - "Cylinder Head Cover")
2.
Remove the lower oil pan.
(Refer to Lubrication System - "Oil Pan")
3.
Rem ...
Timing Chain Repair procedures
Removal
1.
Set No.1 cylinder to TDC/compression.
(1)
Turn the crankshaft pulley clockwise and align its groove with the timing mark "T" of the lower timing chain cover.
(2)
Check that the m ...
