Hyundai Azera: TPMS Receiver Schematic Diagrams
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Suspension System / Tire Pressure Monitoring System / TPMS Receiver Schematic Diagrams
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Suspension System / Tire Pressure Monitoring System / TPMS Receiver Schematic Diagrams

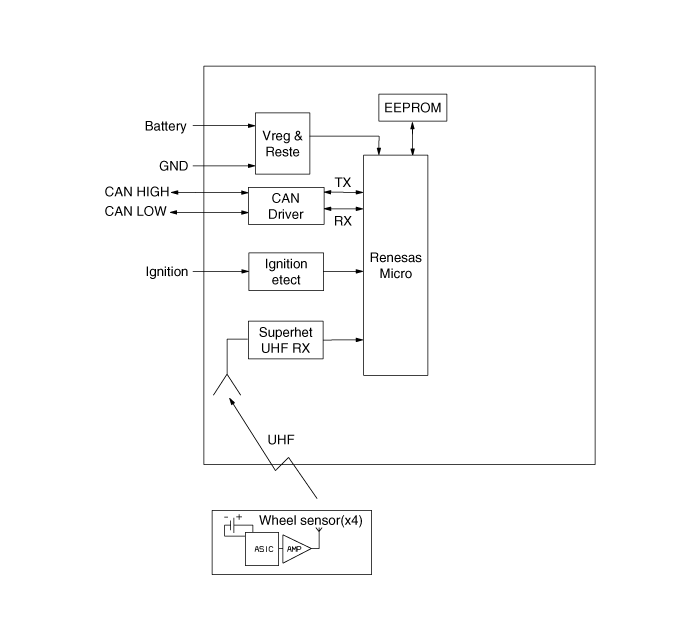

| Circuit Diagram |

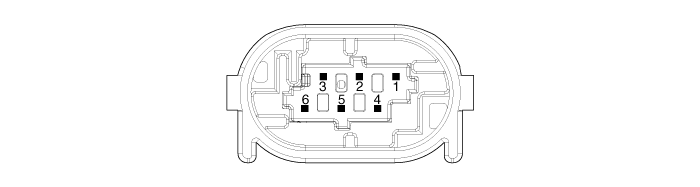

| Connector pin number |
| Pin NO. | Discription | Remark |
| 1 | IGN | |
| 2 | CAN_Low | |
| 3 | - | |
| 4 | Battery | |
| 5 | CAN_High | |
| 6 | Ground |
TPMS Receiver Description and Operation
Description
1.
Mode
(1)
Virgin State
A.
The receiver as a sole part is shipped in this state. Replacement parts should therefore arrive in this state.
B.
In this state, there is no Auto-L ...
TPMS Receiver Description and Operation
Operation
1.
General Function
A.
Auto-locate/learn takes place only once per Ignition cycle.
B.
On successful completion, 4 road wheel sensor ID's, together
with their respective road whee ...
