Hyundai Azera: Water pump Components and Components Location
Fifth generation HG (2011–2025) / Hyundai Azera 2011-2025 Service Manual / Engine Mechanical System / Cooling System / Water pump Components and Components Location
Fifth generation HG (2011–2025) / Hyundai Azera 2011-2025 Service Manual / Engine Mechanical System / Cooling System / Water pump Components and Components Location
| Components |

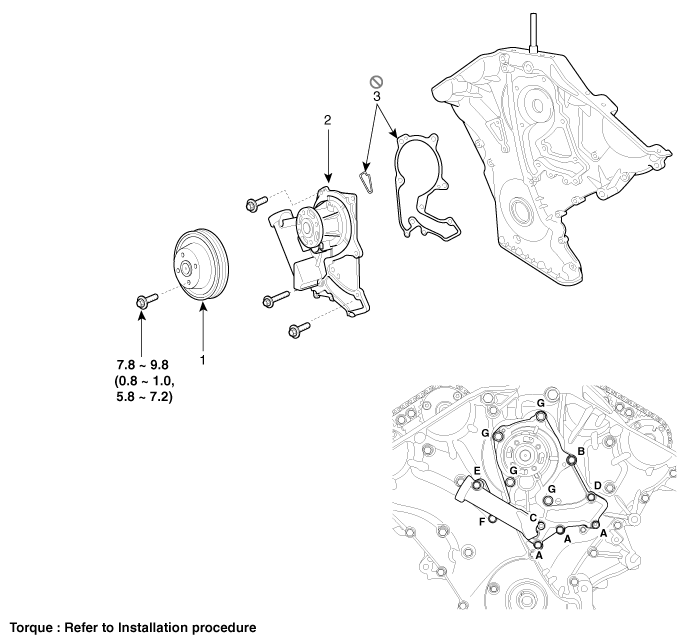

| 1. Water pump pulley 2. Water pump 3. Water pump gasket |
Water Pipe Repair procedures
Removal and Installation
1.
Remove the delivery pipe and injector assembly.
(Refer to Fuel System - "Delivery Pipe")
2.
Remove the water temperature control assembly.
(Refer to Cooling Sys ...
Water pump Repair procedures
Removal
1.
Drain the coolant.
(Refer to Cooling System - "Coolant")
2.
Remove the drive belt.
(Refer to Timing System - "Drive Belt")
3.
Remove the water pump pulley (A).
4.
Remove ...
