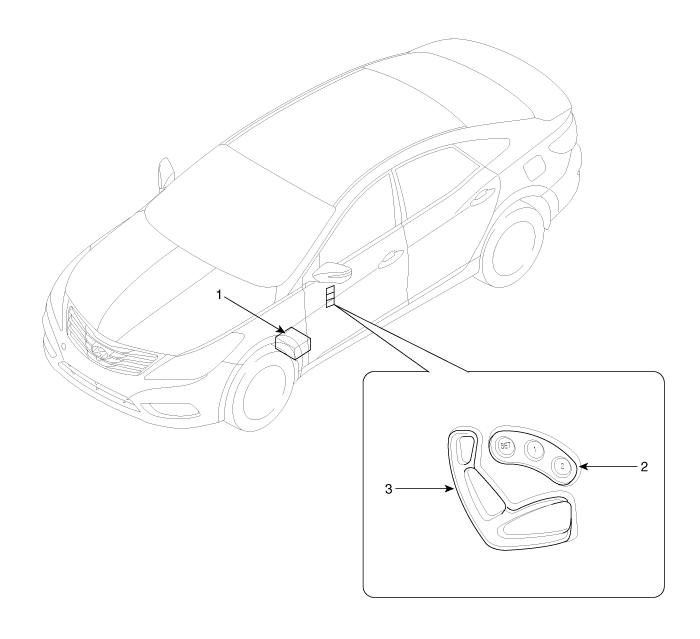

| Component Location |
| 1. Seat Memory Unit (IMS) 2. IMS control switch | 3. IMS driver power seat control |
Specifications
Specifications
IMS Electrical System
ItemSpecificationRating voltageDC 12VOperating voltageDC 9V ~ 16VOperating temperature-30°C ~ +80°CMaintaining temperature-40°C ~ +85°CMax, humid95%Consump ...
Schematic Diagrams
Circuit Diagram
Input/Output Specification
Connector Pin Lay Out
IMS input/output pin information
NoSignal NameI/OContentsRemarkA1Cushion motor FROCushion motor FR outputA2FR height motor upOF ...
