Hyundai Azera: Engine Coolant Temperature Sensor (ECTS) Schematic Diagrams - Engine Control System - Engine Control/Fuel System - Hyundai Azera 2011-2025 Service ManualHyundai Azera: Engine Coolant Temperature Sensor (ECTS) Schematic Diagrams

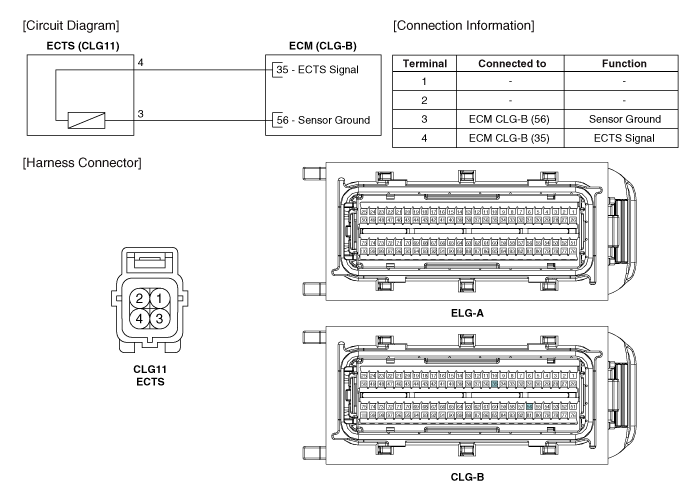

Circuit Diagram

Engine Coolant Temperature Sensor (ECTS) Specifications
Specification TemperatureResistance (k?)°C°F-40-4048.14-20-414.13 ~ 16.830325.7920682.31 ~ 2.59401041.15601400.59801760.32 ...

Engine Coolant Temperature Sensor (ECTS) Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the ECTS connector. 3. Remove the ECTS (Refer to "Removal"). 4. After immersing the thermistor of the sensor into engine coola ...
