Hyundai Azera: Front Seat Frame Assembly Components and Components Location
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Body (Interior and Exterior) / Front Seat / Front Seat Frame Assembly Components and Components Location

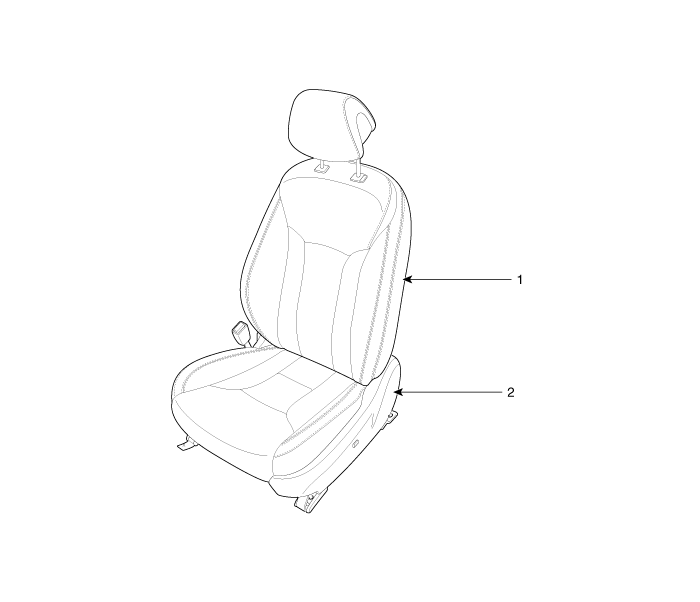

| Component Location |
| 1. Front seat back frame assembly | 2. Front seat cushion frame assembly |
