| Components Location |

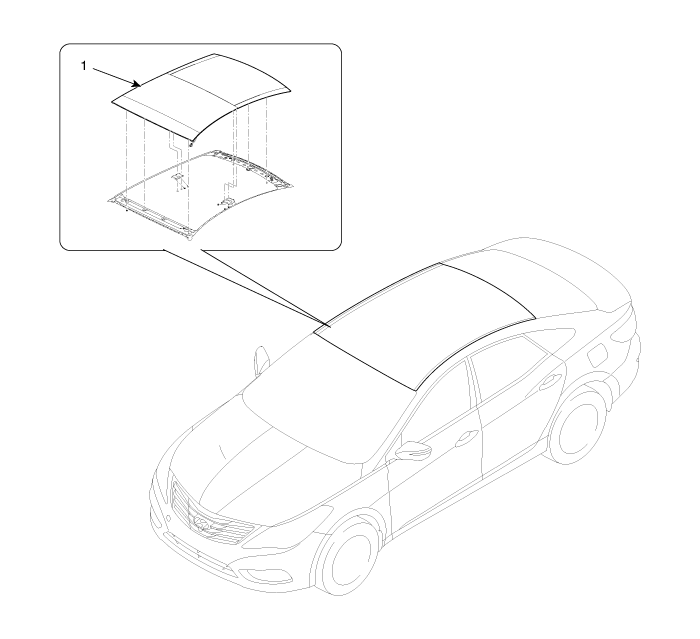

| 1. Panoramaroof Assembly |
Roll Blind Repair procedures
Removal
1.
Remove the roof trim.
(Refer to Roof Trim - "Roof Trim Assembly")
2.
After loosening the mounting screws, then remove the roll blind lower bracket (A).
3.
Remove the roll blind ...
Panoramaroof Assembly Repair procedures
Removal
1.
Remove the roof trim.
(Refer to Roof Trim - "Roof Trim Assembly")
2.
Remove the rear window glass.
(Refer to "Rear Window Glass")
3.
Remove the movable glass.
(Refer to Panor ...
