Hyundai Azera: Power Window Switch Schematic Diagrams
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Body Electrical System / Power Windows / Power Window Switch Schematic Diagrams
Fifth generation HG (2011–2026) / Hyundai Azera 2011-2026 Service Manual / Body Electrical System / Power Windows / Power Window Switch Schematic Diagrams
| Circuit Diagram |

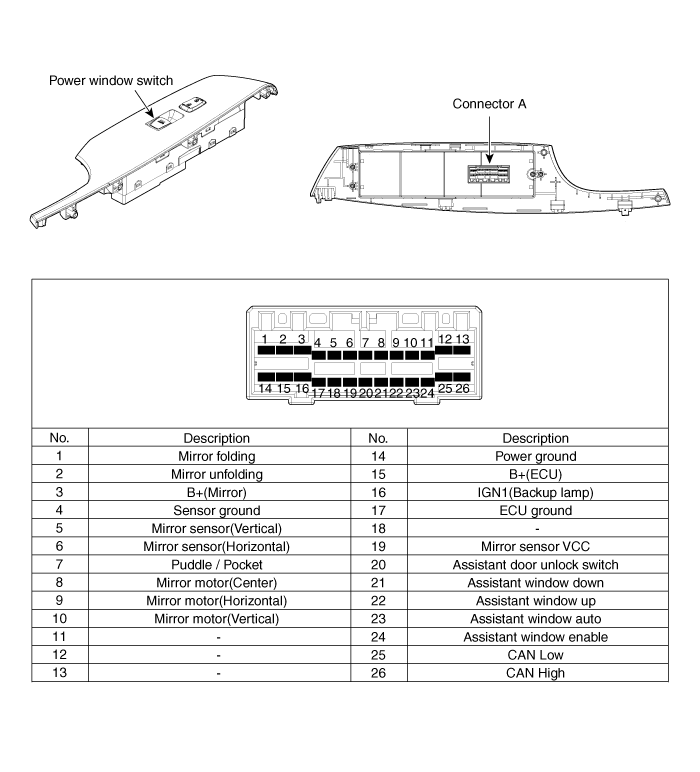

| Driver Power Window Switch (1) |

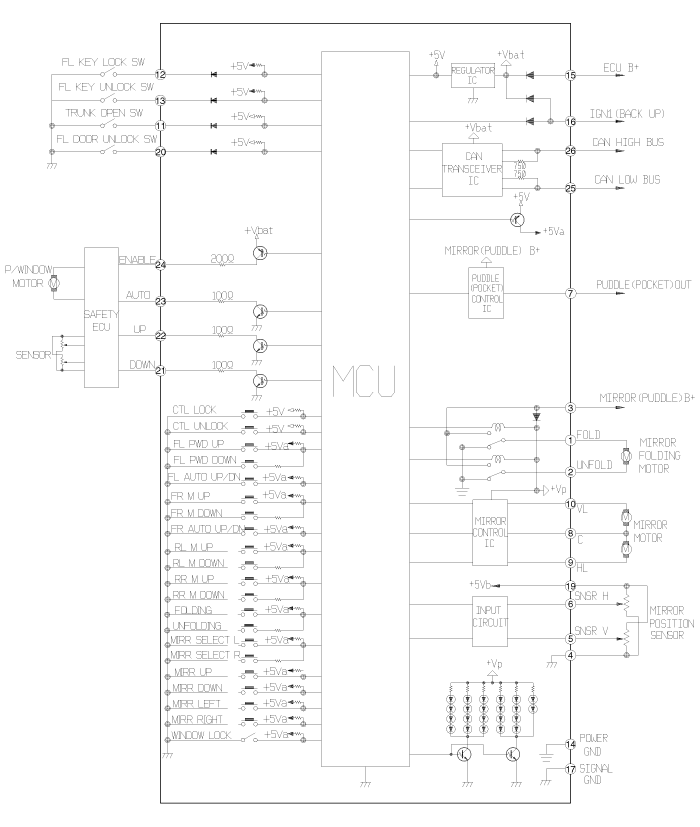

| Driver Power Window Switch (2) |
| Passenger Power Window Swich |

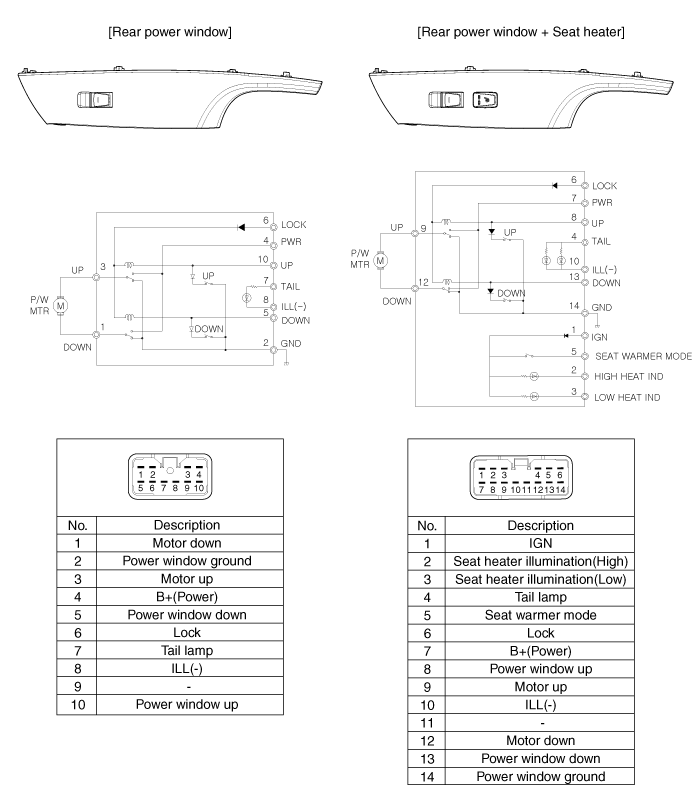

| Rear Power Window Swich |
