Hyundai Azera: Start/Stop Button Components and Components Location

Description and Operation

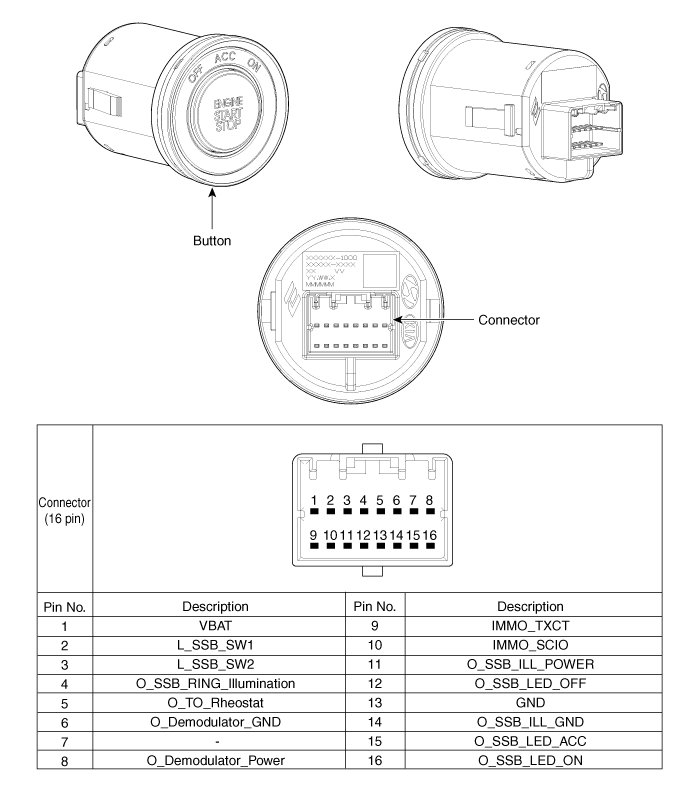

Description System Overview The System offers the following features: - Human machine interface through a 1-stage button, for terminal switching and engine start. - Control of external re ...

Start/Stop Button Repair procedures

Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the AVN head unit. (Refer to AVN System - "AVN Head Unit") 3. Disconnect the start/stop button connector. Push the hook ...
